Technical Specifications
Width: 60″
Depth: 30 1/2″
Height: 60 1/4″
Oven Interior Width: 26 1/2″
Ove n Interior Depth: 25 3/4″
Oven Interior Height: 13 7/8″
Number of Burners: 6 open burners
Burner BTU: 30,000 BTU each
Oven BTU: 31,000 BTU each
Total BTU: 278,000 BTU/hr
Griddle Size: 24″ with two 20,000 BTU burners
Control Type: Manual (Sabaf oven valve / Robertshaw thermocouple)
Temperature Range: 250 °F – 550 °F
Power Type: Natural Gas (Field-Convertible to Propane LPG)
Gas Inlet Size: ¾″ NPT
Installation Type: Freestanding
Legs: 6″ Adjustable Stainless Steel
Range Base Style: Space-Saver Double Oven
Construction: Fully MIG-Welded Steel Frame
Components: Sabaf Oven Valve, Robertshaw Thermocouple, Maxitrol Gas Regulator
Shelf Depth (Back Riser): 9 ¾″
Front Ledge Workspace: 2″ Deep
Conversion Kit: Included (Natural Gas ↔ Propane LPG)
Model Width Selection
Choose width to see specs for other models in this series.
Product Description

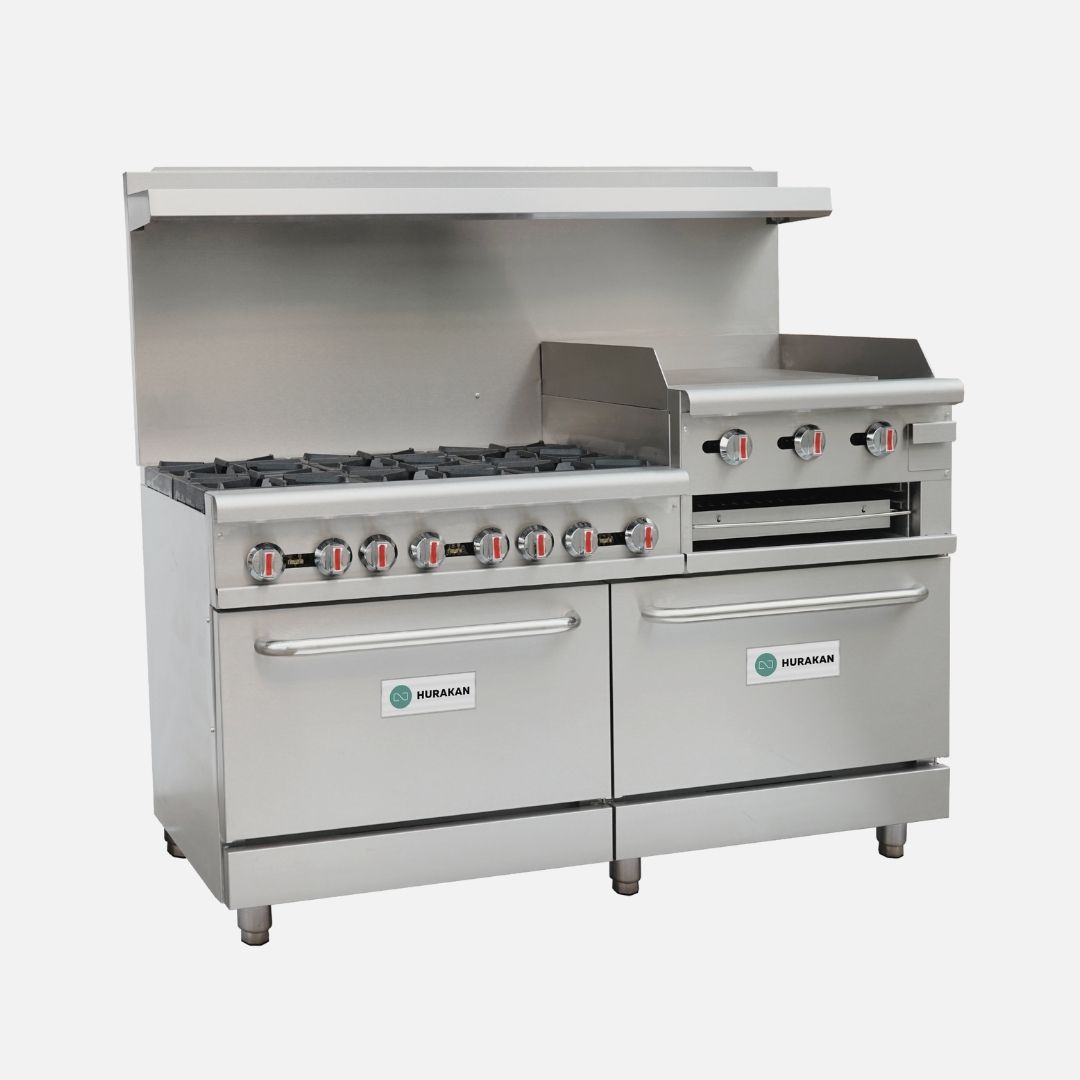

The Hurakan HKN-XRFG60O6GB24A is a premium-grade commercial gas range built for maximum performance and versatility.
It combines six open burners (30,000 BTU each), a 24″ griddle, an integrated broiler, and two 31,000 BTU ovens, delivering a total output of 278,000 BTU/hr.
Crafted with a fully MIG-welded frame for outstanding rigidity, the range features a stainless-steel front and back-riser, galvanized sides, and 6″ adjustable stainless legs for perfect leveling.
The heavy-duty cast-iron lift-off grates and pull-out crumb tray with rounded edges simplify cleaning and enhance safety.
Each oven is equipped with a U-shaped 31,000 BTU burner, capable of holding full-size sheet pans (front-to-back or side-to-side).
The thermostat range of 250°F to 550°F provides precision for baking, roasting, and broiling.
The 24″ griddle plate (¾″ thick steel) includes two 20,000 BTU burners, perfect for breakfast menus and flat-top grilling.
For reliability, the model includes Sabaf oven valve, Robertshaw thermocouple, and Maxitrol gas regulator, ensuring safe, stable performance in continuous operation.
Field-convertible gas system supports both Natural Gas and Propane (LP), providing flexibility for any kitchen installation.
Resources and Downloads
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
